SAP Ariba Integration with S/4HANA: A Complete Guide to Seamless Procurement Transformation

For enterprises using SAP S/4HANA, procurement is often powered by SAP Ariba, a cloud-based platform designed for supplier collaboration, sourcing, and spend management. But unlocking the full potential of these two systems requires seamless integration.

Streamline Your SAP Data Management with DataLark

The challenge? SAP Ariba uses cXML (Commerce XML) as its messaging standard, while S/4HANA typically exchanges information via SOAP/XML services or OData APIs. Without automation frameworks, IT teams can spend significant time manually coding transformations, only to run into errors, scalability issues, and costly maintenance.

The good news? With a structured XML mapping strategy, enterprises can overcome these hurdles, enabling real-time, accurate, and efficient procurement data exchange between Ariba and S/4HANA.

Why SAP Ariba – S/4HANA Integration Is Complex

Initially, integration between SAP Ariba and S/4HANA was established through a 1ZM (Procure-to-Pay) scenario, which relied on IDoc-based communication and middleware such as SAP PI/PO or the Cloud Integration Gateway. This approach gave companies flexibility but required heavy customization, increasing long-term complexity and maintenance costs.

Over time, SAP shifted toward the 2NV (Guided Buying) scenario, which leverages standardized APIs and predefined integration flows delivered via SAP Business Technology Platform Integration Suite. This new model simplifies deployment, aligns with SAP’s clean core strategy, and accelerates innovation adoption. However, the transition created challenges: some functions available in 1ZM were not yet fully supported in 2NV, forcing many organizations to operate in a hybrid mode while reworking their existing integrations.

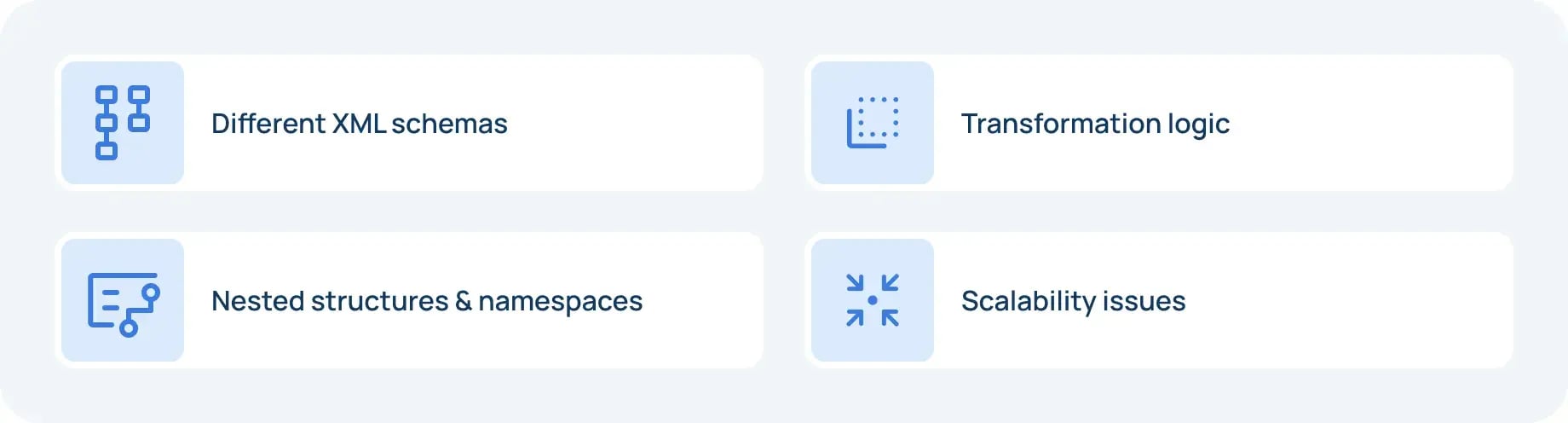

Challenges that procurement data exchange introduces:

Challenges that procurement data exchange introduces_-min_11zon

  • Different XML schemas: Ariba’s cXML differs significantly from the SOAP-based messages in S/4HANA.
  • Nested structures & namespaces: Both systems require strict adherence to XML namespaces and hierarchical structures.
  • Transformation logic: Business rules often require applying constants (e.g., currency codes), converting value formats (e.g., date formats) or conditional transformation.
  • Scalability issues: Manual mappings quickly become difficult to scale and maintain as procurement processes evolve.

Without automation, IT teams spend weeks building custom code, only to struggle with maintenance when schemas change.

The Technical Backbone of Integration

Let’s unpack the key techniques that make SAP Ariba — S/4HANA integration successful.

Declarative transformation rules

One of the most common sources of integration failure is ad hoc, manually coded transformations. When mappings are defined in scripts scattered across systems, they become brittle and nearly impossible to maintain at scale.

A declarative, target-first approach solves this problem. Instead of starting with the source system and trying to “fit” its data into the target, the design begins with the S/4HANA target structure. For each required target field, the corresponding Ariba source field (or transformation rule) is explicitly defined.

This method provides several benefits:

  • Clarity: Every target field has one — and only one — mapping, reducing ambiguity.
  • Validation: Duplicates or missing mappings can be flagged before runtime.
  • Maintainability: Changes in S/4HANA or Ariba schemas can be updated at the mapping level without rewriting entire scripts.

Example Mapping:

$MessageHeader.CreationDateTime: cXML@timestamp

$SupplierConfirmation.ActionCode: CONST(01)

$Invoice.Amount: $cXML.Request.InvoiceDetailRequest.TotalAmount

Here, the target-first format enforces predictability: S/4HANA fields are always on the left, while sources or transformations are on the right.

Business rules for procurement flows

Procurement processes are not just data exchanges; they are policy-driven workflows. Integration must account for business rules such as:

  • Default constants: For example, every invoice may need to include a fixed currency code (CONST(USD)) unless specified otherwise.
  • Transformations: Delivery dates may arrive in ISO timestamps from Ariba but need to be reformatted into YYYY-MM-DD for S/4HANA.
  • Aliases: Deeply nested paths like $cXML.Request.OrderRequest.ItemOut.ItemDetail.UnitPrice.Money can be shortened to $ItemPrice for reuse across mappings.

These business rules should be embedded declaratively, not buried in hidden scripts. Doing so ensures consistency, transparency, and auditability.

Example Business Rule:

$InvoiceDetail.PaymentTerms: CONST(NET30)

$InvoiceDetail.DueDate: FUNC(format_date, $cXML.Invoice.Date)

This ensures that every invoice processed through integration respects the company’s payment terms and that due dates are properly formatted for S/4HANA.

Arrays and line item management

Procurement messages frequently involve lists of items, such as purchase order lines or invoice positions. Handling these correctly is one of the most challenging parts of integration.

  • Unindexed arrays ([]): Apply a mapping rule to every item in the array. Example: $Invoice.[]LineItems.ID: $cXML.Request.[]ItemOut.ItemID
  • Indexed arrays ([0], [1]): Map to a specific position, useful for scenarios where item alignment must be preserved. Example: $PurchaseOrder.Items.[0].Status: CONST(CREATED)

Execution Order Matters:

  • If a constant is applied before an array expands, it will apply only to the first item, not all items.
  • If applied after, it propagates across every item.

Invoices or POs with dozens of items must remain structurally consistent between Ariba and S/4HANA. Misaligned arrays can cause errors in quantities, postings, or financial records.

Namespace & XML declaration management

Namespaces may appear minor, but they often determine whether integration succeeds or fails. Both Ariba and S/4HANA enforce strict namespace rules in their payloads.

For example:

<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">

   <soap:Body>

      <n0:SupplierConfirmationRequest xmlns:n0="http://sap.com/xi/Procurement">

      </n0:SupplierConfirmationRequest>

   </soap:Body>

</soap:Envelope>

Key considerations:

  • Prefixes must match expected schema definitions (soap, n0).
  • URIs must be correct and not mistyped (http://sap.com/xi/Procurement).
  • Declarations must appear consistently across all payloads to avoid runtime mismatches.

In addition, the XML declaration header ensures proper interpretation of encoding and schema:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE cXML SYSTEM "http://xml.cxml.org/schemas/cXML/1.2.065/cXML.dtd">

Neglecting to include or properly format these declarations often results in system rejections or undetected data issues.

Runtime Execution and Validation

Even with perfect mappings, runtime integration needs validation and error handling:

  • Recognition: Identify whether incoming payloads are Ariba cXML or other formats.
  • Transformation: Apply mappings, constants, and functions.
  • Output generation: Ensure payloads match S/4HANA’s expected schema exactly.
  • Logging & monitoring: Capture transformation results for audit trails.

Platforms like DataLark enhance this backbone by automating validation against SAP integration schemas and Ariba cXML DTDs, reducing failed postings.

Performance and scalability

Integration isn’t only about accuracy — it must also scale. High-volume enterprises typically require:

  • Batch processing: Efficiently handling bulk procurement documents.
  • Streaming mode: Processing confirmations and invoices in real time without lag.
  • Error isolation: Ensuring one bad payload doesn’t block the entire batch.

Scalability requires careful tuning of batch size, memory allocation, and stream management. Without it, even the most accurate mappings will falter under production loads.

Extensibility with functions

While declarative mappings cover most scenarios, custom logic functions extend integration capabilities. For instance:

  • Date manipulation: Splitting timestamps into date/time fields.
  • Conditional logic: If payment terms are missing, apply defaults.
  • Value manipulation: Currency conversions or unit of measure translations.

Functions, often defined in Python (or other scripting languages), can be invoked directly within mappings:

$Delivery.Date: FUNC(split_date, $cXML.Delivery.Timestamp, CONST(%Y-%m-%d))

This balance of declarative rules + scripted extensions ensures both simplicity and flexibility.

Configuration Strategies for SAP Ariba & S/4HANA

A technically sound integration is only as effective as the way it is configured. While mappings and rules provide the logic, configuration ensures that the integration behaves consistently under operational conditions. This foundation ensures that the transformation logic runs reliably.

Basic settings: Structuring the foundation

Every integration begins with schema definitions and root tags that define and stabilize the transformation process.

  • Input schema: Defines the structure of Ariba’s inbound payloads. This is essential because cXML files may include multiple nested sections such as headers, supplier references, or audit data. The schema ensures the integration engine knows exactly which fields to expect.
  • Output schema: Defines the structure of the message that S/4HANA expects, whether SOAP or OData. Without a clear output schema, payloads risk rejection.
  • Root tags: Large XML payloads often contain wrappers or unrelated data. By configuring root tags, only the business-relevant sections (e.g., <OrderRequest>, <InvoiceDetailRequest>) are parsed.
  • Output paths: Defining where the transformed file should be stored (on a system directory, middleware, or directly pushed via API) provides auditability and fallback in case of integration issues.

This setup reduces noise, improves reliability, and ensures the transformation engine works only on the relevant parts of the payload.

Expert settings: Fine-grained control

Once the foundation is in place, expert settings enable advanced tuning and flexibility.

  • Runtime scripting: Allows conditional logic or transformations that go beyond declarative mappings. For instance, a runtime script might handle supplier-specific exceptions where a certain partner requires a non-standard format.
  • Field rendering: Mandatory procurement fields like Message ID or Buyer Reference must always be present. Field rendering scripts enforce these rules, ensuring that every outbound payload is structurally complete.
  • Performance parameters: High-volume environments need to optimize processing speed. Parameters like batch size (e.g., grouping 500 invoices per batch) and streaming mode (processing POs in real-time streams) ensure scalability.
  • Error handling flags: Settings such as “exclude null values” or “process each source separately” prevent incomplete payloads from crashing the entire process.

This dual-layered approach — basic for structure, expert for control — ensures integration handles both routine and exceptional scenarios.

Where DataLark Fits In

It is evident that Ariba — S/4HANA integration is complex. While manual coding creates significant overhead, modern integration platforms — like DataLark — are designed to simplify this landscape by providing:

  • Declarative mapping engine: Aligns naturally with the target-first approach, ensuring clarity and maintainability.
  • Reusable business rules: Instead of reinventing the wheel, organizations can leverage predefined templates for constants, functions, and validation.
  • Compliance by design: Automated namespace injection and schema validation reduce failed postings.
  • Scalability: Built-in batch and streaming parameters ensure that integration runs smoothly whether processing 100 or 100,000 documents daily.

As a result, enterprises spend less time troubleshooting failed payloads and more time advancing strategic procurement transformation.

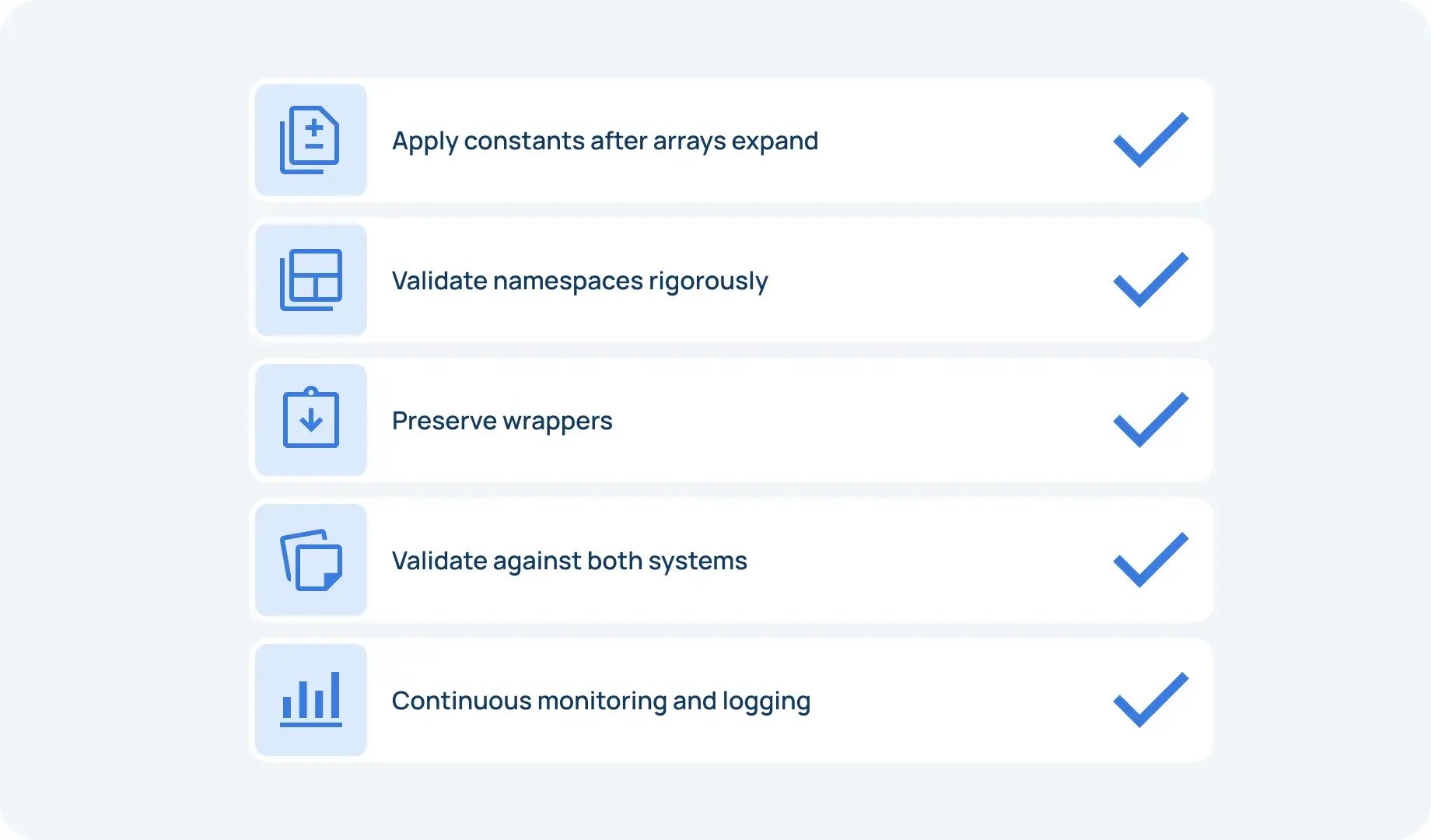

Best Practices for Seamless Procurement Transformation

Integrations succeed not just because of technology, but because of disciplined best practices.

Best Practices for Seamless Procurement Transformation-min_11zon

  • Apply constants after arrays expand
    When mapping line items, always sequence constants after arrays expand. This ensures values like status codes or currencies propagate to every item. If applied earlier, only the first item may inherit them.
  • Validate namespaces rigorously
    Namespace mismatches are a critical source of integration errors. Even if the payload looks correct, S/4HANA will reject it without the proper prefixes. Regular validation against SAP schemas is essential.
  • Preserve wrappers
    Many payloads include non-business wrappers like audit headers. These should be preserved to maintain compliance with middleware or external audit requirements, even if they are ignored by S/4HANA.
  • Validate against both systems
    Payloads should be tested not only against Ariba’s cXML DTDs but also against SAP’s integration schemas. Dual validation ensures no surprises when payloads reach production.
  • Continuous monitoring and logging
    Integration isn’t a “set it and forget it” exercise. Monitoring transformation performance, tracking rejected messages, and logging exceptions are critical to long-term reliability.

These practices transform integrations from fragile and reactive to robust and predictable.

The Business Impact

SAP Ariba integration with S/4HANA is often framed as a technical issue, but its business impact is profound.

  • Faster supplier onboarding: Standardized, validated payloads mean suppliers can transact immediately without IT interventions..
  • Reduced exceptions: Automated business rules prevent common errors like mismatched currencies or missing tax codes.
  • Operational agility: Real-time integration ensures that supplier delays, price changes, or invoice rejections are immediately visible in S/4HANA.
  • Lower cost of ownership: Declarative rules and reusable mappings minimize the need for expensive custom coding and ongoing maintenance.

These outcomes lead to higher efficiency, stronger compliance, and better supplier relationships.

Conclusion

SAP Ariba integration with S/4HANA is more than a technical connection; it is a key enabler for procurement transformation. Without it, organizations face duplicated efforts, compliance risks, and longer cycle times. With it, they unlock visibility, agility, and scalable supplier collaboration.

The path to success lies in declarative mappings, robust business rules, namespace precision, and consistent best practices. By reducing technical complexity, platforms like DataLark serve as a strategic enabler, helping to accelerate an organization's procurement transformation journey.

For enterprises seeking procurement excellence, the takeaway is clear: integration is not only IT’s responsibility — it is also a strategic capability.
